Beam Steel Box Double Girder 10Tons Overhead Travelling Crane Indoor
Product Descriptions of double girder 10tons overhead travelling crane:
Double girder 10tons hoist traveling bridge crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system.
The lifting mechanism is electric hoist trolley,lifting speed is 7m/min or 7/0.7m/min,cross travel speed is 20m/min,long travel speed is 20m/min,
pendent line control or remote control or cabin control.
Schneider main electrics,speed control can be by frequency inverter.
Working class is A3,A4
Working condition Main Features:
1. Working tempreture:-10~+40°C,
2. Work class:A3,A4,
3. Power Source:3Ph,380V,50Hz or as per customer requirement.
Safety feature:
1. Weight overload protection device,
2. Top quality long time bearing polyurethane materials buffer,
3. Crane traveling limit switch
4. Emergency stop system,Voltage lower protection function,
5. Current overload protection system and so on!
Certifications
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control,ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.

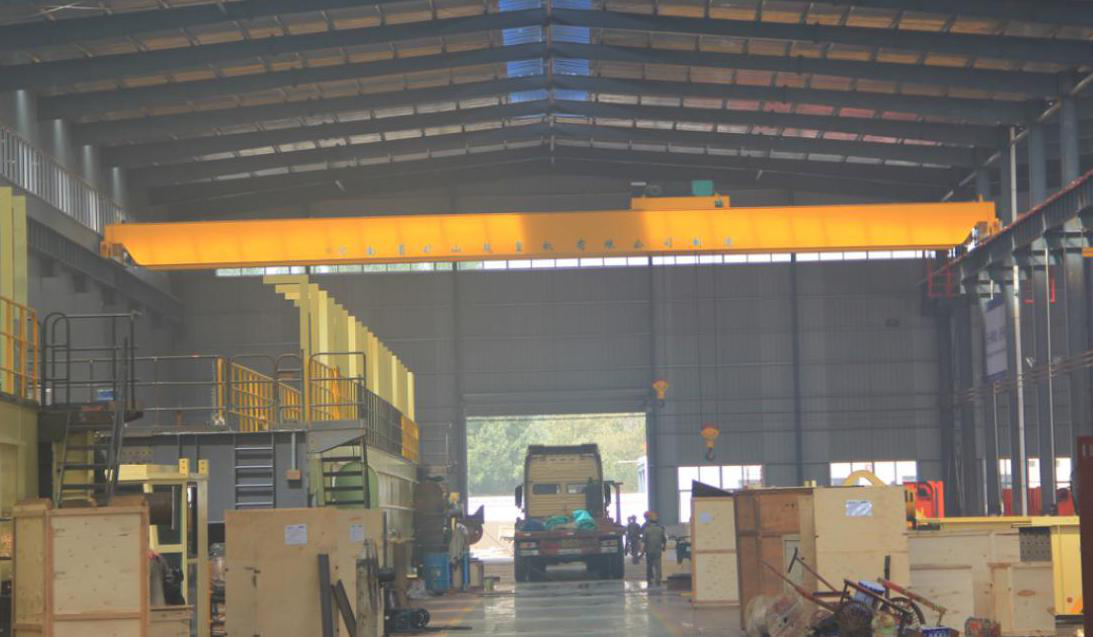

Photos:
Sketch:
Product Structure:
| LH double beam overhead crane |
| Lifting Capacity T | 3 | 5 | 10 | 16 | 20 |
| Span M | 10.5-31.5 |
| Speed M/min | hoist | 8.8/0.8 | 8.8/0.8 | 7.7/0.7 | 3.5/0.35 | 6.6/0.6 |
| Trolley travelling | 20 |
| Bridge travelling | 20 |
| working level | | | A3,A4 | | |
| Weight T | Total Weight | floor operated | 4.5-19.1 | 5.1-20.7 | 6.1-23 | 7-26.7 | 8.9-29.7 |
| cabin closed | 5.6-19.9 | 6.2-21.5 | 7.2-23.8 | 8.1-27.5 | 10-30.5 |
| Max Wheel Load KN | 33-87 | 45-95 | 72-132 | 107-178 | 132-210 |
| Rail recommended | 24kg/m |
| Power Source | According to your demand |
